Glossary

Electrometallurgy is the branch of metallurgy that uses electrical energy to extract, refine, plate, or otherwise process metals. Instead of relying mainly on furnace heat like pyrometallurgy or liquid chemical leaching like hydrometallurgy, electrometallurgy uses an electric current to drive chemical reactions that move metal ions, separate impurities, or deposit metal onto a surface.

A common electrometallurgical process is electrolysis. In electrolysis, an electric current passes through an electrolyte, which is a liquid or molten material that contains dissolved ions. The current forces certain ions to gain or lose electrons at electrodes. This can cause a metal to form, dissolve, or transfer from one location to another.

Electrometallurgy is often used in electrowinning, electrorefining, and electroplating. In electrowinning, metal ions are recovered from a solution and deposited as solid metal onto a cathode. This is used for metals such as copper, zinc, nickel, cobalt, and aluminum. In electrorefining, an impure metal is dissolved from an anode and redeposited in a purer form on a cathode. Copper refining is a common example. In electroplating, a thin layer of metal such as zinc, nickel, chromium, copper, tin, or gold is deposited onto a part to improve corrosion resistance, appearance, conductivity, wear resistance, or solderability.

Aluminum production is one of the most important examples of electrometallurgy. Aluminum oxide is dissolved in molten cryolite and reduced using a large electric current. Because aluminum bonds very strongly with oxygen, ordinary carbon reduction methods used for iron are not practical, so electrical energy is needed to separate the aluminum metal.

In fastener and industrial applications, electrometallurgy is especially relevant to plated finishes. Zinc plating, nickel plating, cadmium plating, tin plating, and other electrodeposited coatings rely on controlled electrical current to build a metal coating on the surface of bolts, screws, nuts, washers, and other parts. The process must be carefully controlled because plating thickness, coverage, adhesion, appearance, corrosion resistance, and hydrogen embrittlement risk can all be affected by the chemistry and electrical conditions.

Electrometallurgy is different from simply using electricity to heat something. Its defining feature is that electrical energy directly drives a chemical or electrochemical change. In practical terms, electrometallurgy uses electric current to separate, purify, or deposit metals.

Hydrometallurgy is the branch of metallurgy that uses water-based chemical solutions to extract, separate, and purify metals from ores, concentrates, recycled materials, or industrial waste streams. Instead of relying mainly on intense furnace heat, hydrometallurgy uses controlled chemical reactions in liquids to dissolve the valuable metal and separate it from unwanted material.

A typical hydrometallurgical process begins with leaching. In leaching, the metal-bearing material is exposed to an acid, alkaline solution, cyanide solution, ammonia solution, or another chemical reagent that dissolves the desired metal into the liquid. The leftover undissolved rock, gangue, or residue is then separated from the metal-rich solution.

After the metal is dissolved, the solution is purified and concentrated. This may involve filtration, precipitation, solvent extraction, ion exchange, or other chemical separation methods. The goal is to remove unwanted elements and isolate the metal in a useful form. Once purified, the metal is recovered from the solution by methods such as electrowinning, chemical precipitation, or crystallization.

Hydrometallurgy is widely used for metals such as copper, gold, uranium, nickel, cobalt, zinc, aluminum, and rare earth elements. For example, copper can be leached from oxide ores using acid, then recovered from the solution by electrowinning. Gold may be dissolved from ore using a carefully controlled cyanide leaching process, then recovered from the solution.

Hydrometallurgy is often compared with pyrometallurgy. Pyrometallurgy uses high temperatures, furnaces, melting, and slag formation to separate metals. Hydrometallurgy uses liquid chemistry instead. Because it can operate at much lower temperatures, hydrometallurgy may use less energy and can sometimes process lower-grade ores that would be uneconomical to smelt. However, it requires careful control of chemicals, water, waste solutions, and environmental safeguards.

Metallurgy is the branch of science and engineering that studies the properties, behavior, and processing of metals and their alloys. It involves understanding how the structure of metals—from the atomic level to the macroscopic scale—affects their performance, strength, and durability under different conditions.

The field of metallurgy can be divided into three main areas. Physical metallurgy focuses on how the internal structure of metals (such as grain size, crystal structure, and dislocations) influences their mechanical, electrical, and magnetic properties. Extractive metallurgy deals with the processes used to obtain metals from their ores, including smelting, refining, and electrolysis. Mechanical or industrial metallurgy applies this knowledge to the design, manufacturing, and treatment of metal products—covering processes like casting, forging, heat treatment, and welding.

Metallurgy plays a crucial role in nearly every industry that uses metals, including automotive, aerospace, construction, energy, and manufacturing. By understanding and controlling metallurgical processes, engineers can enhance metal performance, prevent failures such as corrosion or fatigue, and develop new materials with tailored properties for specific applications.

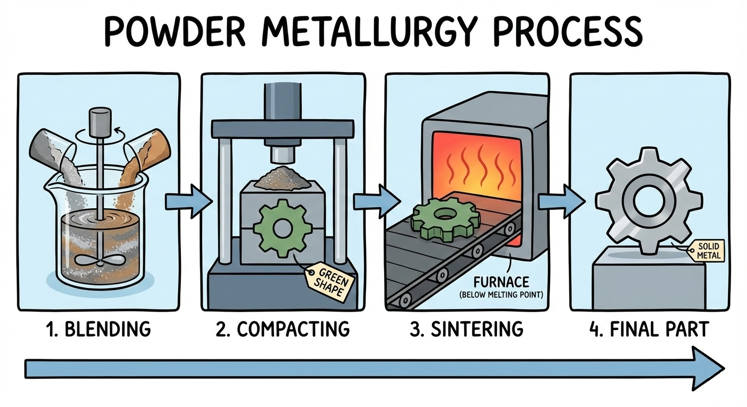

Powder metallurgy (PM) is a manufacturing method where you make metal parts from metal powders instead of melting a bulk ingot and machining it down. In its classic form, PM means you blend a controlled powder mix, compact it in a die into a “green” (unsintered) shape, then sinter it—heating it to a temperature below the main metal’s melting point so the powder particles bond together into a solid part.

The most common production route is called press-and-sinter. The powder is pressed (often at room temperature) in a rigid die, then sintered in a controlled atmosphere furnace to develop strength and final properties; secondary steps like sizing/coining, heat treatment, machining, or impregnation may follow if tighter tolerances or special performance is required. The Metal Powder Industries Federation describes press-and-sinter as the basic conventional PM process using pressure and heat to form precision metal parts.

PM is widely used because it can produce near-net-shape parts with excellent repeatability at high volume, often with less material waste than machining. It also enables properties that are hard to get other ways—like controlled porosity (useful for self-lubricating bearings or filtration) and certain hard materials such as cemented carbides.

The tradeoffs are real: conventional press-and-sinter parts can retain some residual porosity, which can reduce ductility and fatigue strength compared to fully wrought material unless you use densification methods (e.g., hot isostatic pressing, forging after sintering, or other advanced PM routes). That’s why PM shines in applications where its shape capability + cost + repeatability beat out machining, and why critical structural parts may require higher-density PM processes.

Pyrometallurgy is the branch of metallurgy that uses high temperatures to extract, refine, or alter metals and metal-bearing materials. The term comes from words meaning “fire” and “metal,” and it includes processes in which ores, concentrates, scrap, or intermediate products are heated so that chemical reactions can separate the desired metal from unwanted minerals and impurities.

In a typical pyrometallurgical process, the raw material is placed in a furnace and heated until important physical or chemical changes occur. Some components may melt, burn, evaporate, oxidize, or react with added materials. The valuable metal can then be collected as a molten metal phase, while many impurities combine into a separate molten material called slag. Because the metal and slag usually have different densities and chemical compositions, they can often be separated after melting.

Common pyrometallurgical operations include roasting, calcination, smelting, converting, and fire refining. Roasting heats an ore in the presence of oxygen, often to remove sulfur or convert sulfide minerals into oxides. Calcination heats material with little or no oxygen to remove water, carbon dioxide, or other volatile substances. Smelting melts the material and uses chemical reactions to separate the metal from the ore. Converting removes additional impurities from molten metal, while fire refining uses heat and controlled oxidation or reduction to improve metal purity.

Reducing agents such as carbon, coke, carbon monoxide, or hydrogen may be used to remove oxygen from metal oxides. Fluxes are often added to react with unwanted minerals and form slag. The exact temperature, furnace atmosphere, and chemical additions depend on the metal being processed. Iron, copper, lead, nickel, tin, and several other metals are commonly produced or refined using pyrometallurgical methods.

Pyrometallurgy is valued because it can process large quantities of material quickly and can produce molten metal that is ready for casting or further refining. However, it requires substantial energy and may produce gases, dust, slag, and greenhouse-gas emissions that must be controlled. Modern furnaces therefore use filtration, gas-cleaning equipment, heat recovery, and carefully controlled operating conditions to improve efficiency and reduce environmental impact.

Pyrometallurgy differs from hydrometallurgy, which uses water-based chemical solutions to dissolve and recover metals, and from electrometallurgy, which uses electrical energy to extract or purify metals. In practical terms, pyrometallurgy uses heat-driven reactions to transform metal-bearing material into a usable or more highly refined metal.
